Black Chrome Absorber

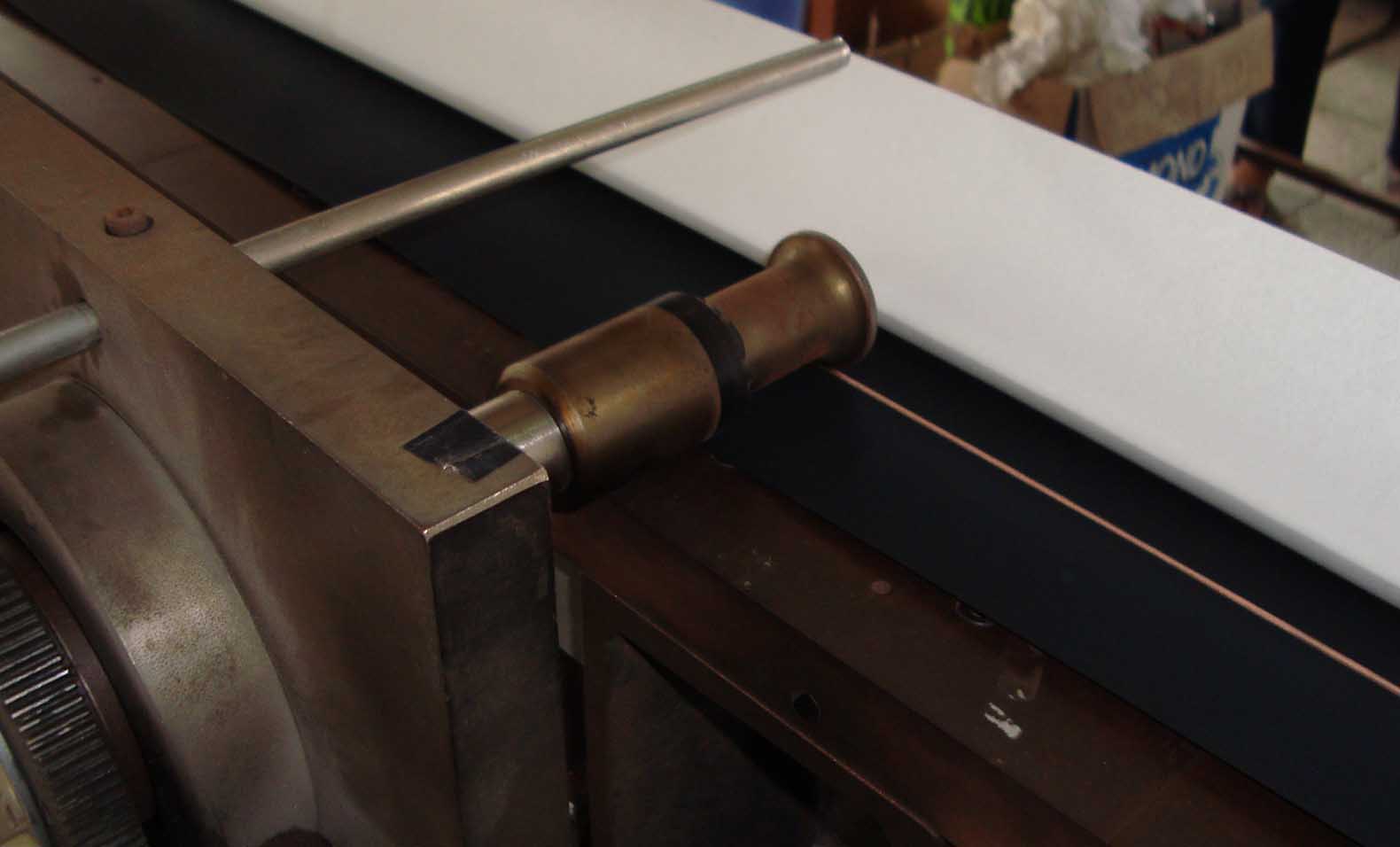

 During the ultrasonic welding process, the bonding takes place in a solid state, without any melting of the parts being joined. This is accomplished by overlapping the weld metals and rubbing them against each other using low-pressure, high-frequency mechanical oscillation. Within a fraction of a second, a permanent, solid and metallurgically pure connection with outstanding physical properties is created.



Ultrasonic welding allows the welding of materials with different melting temperatures, such as aluminum and copper for example.



The ultrasonic welding process offers the user a number of economical, technological and not least importantly ecological advantages which form the foundation for the worldwide success of this method:



→ high-quality metallic bond
→ excellent electrical properties
→ low thermal load to welding materials
→ economical due to low operating costs
→ comprehensive process control
→ short welding times

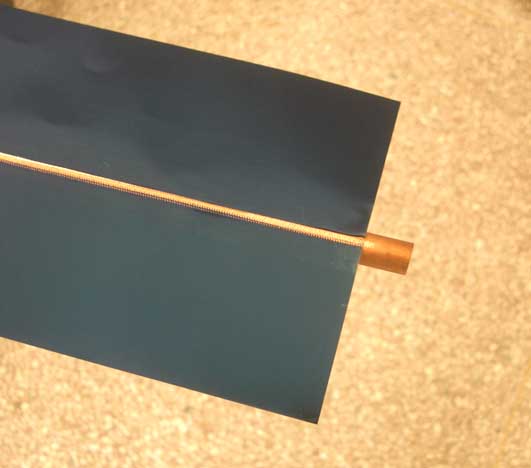

Ultrasonically welded absorber fins. The connection between the copper pipe and the sheet copper was made by roll seam welding.

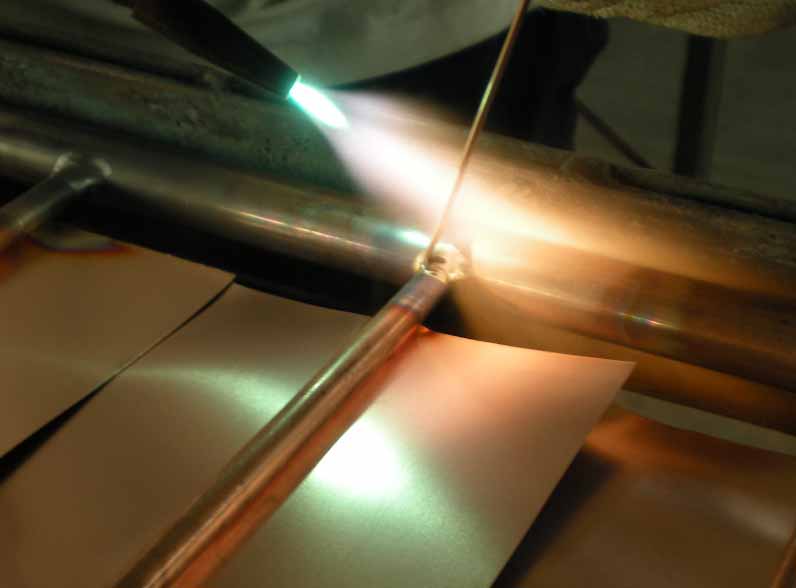

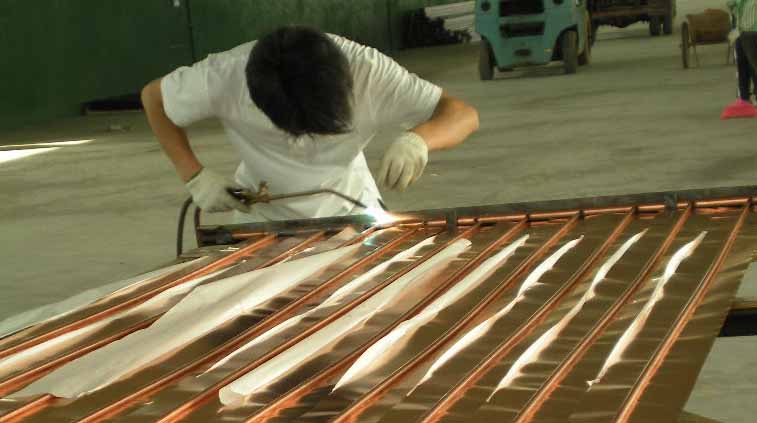

Pipe with pipe together Silver-Cu welding



Good melting properties. Silver enhances flow. Enhances capillary flow, improves corrosion resistance of less-noble alloys, worsens corrosion resistance of gold and palladium.

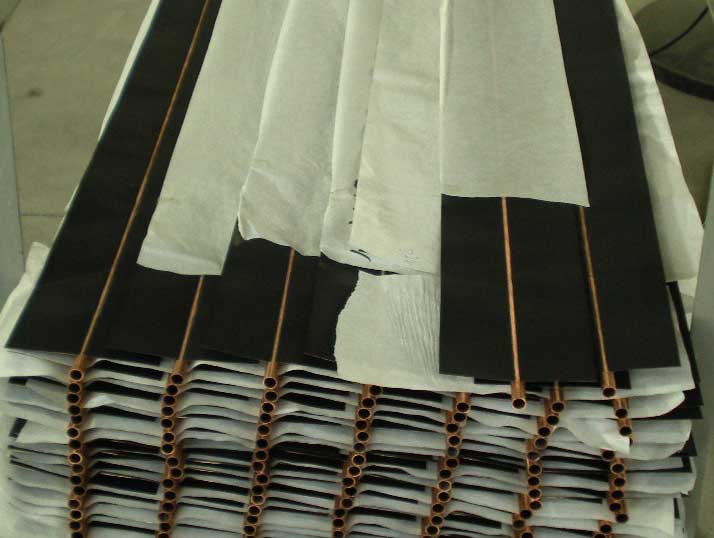

*  Copper fin of selective black chrome surface.
*  Absorptivity: 95±2%     Emission: 5±2%*  Fin standard dimension:
*  1840mm x 125mm x 0.15mm , ( length x width x thickness )
*  Copper tube standard dimension:
*  Riser tube:  1880mm x 10mm x 0.45mm ( or 0.6mm ),  ( length x out    diameter x thickness )
*  Copper fin of selective black chrome surface.
*  Absorptivity: 94%-95%     Emission: 10%-15%
*  Fin standard dimension:
*  1840mm x 125mm x 0.15mm , ( length x width x thickness )
*  Copper tube standard dimension:
*  Riser tube:  1880mm x 10mm x 0.45mm ( or 0.6mm ),  ( length x out        diameter x thickness )
*  Head tube: 1000mm x 25mm ( or 22mm ) x 0.6mm ( or 0.8mm ), ( length    x out diameter x thickness )


We supply High-quality unglazed solar absorber with black chrome coating for customers.
Foreign customers  buy our solar absorber for swimming pool and assemble ,solar collector in their    market for   distributing and installing.
We can design different sizes and specification for customers with their requirements.
So if you were interested in our products,never hesitate to contact with us .
Be sure we can comply with your requirements .
