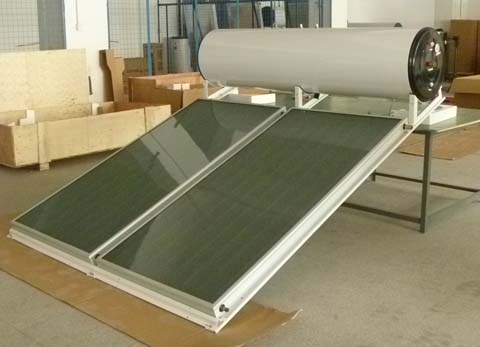

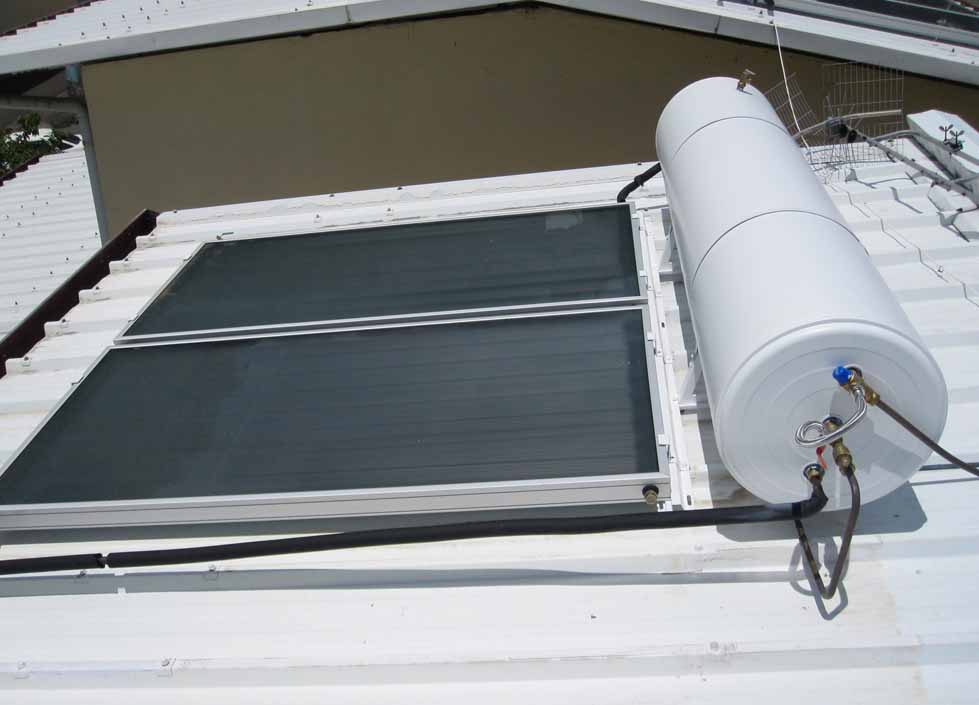

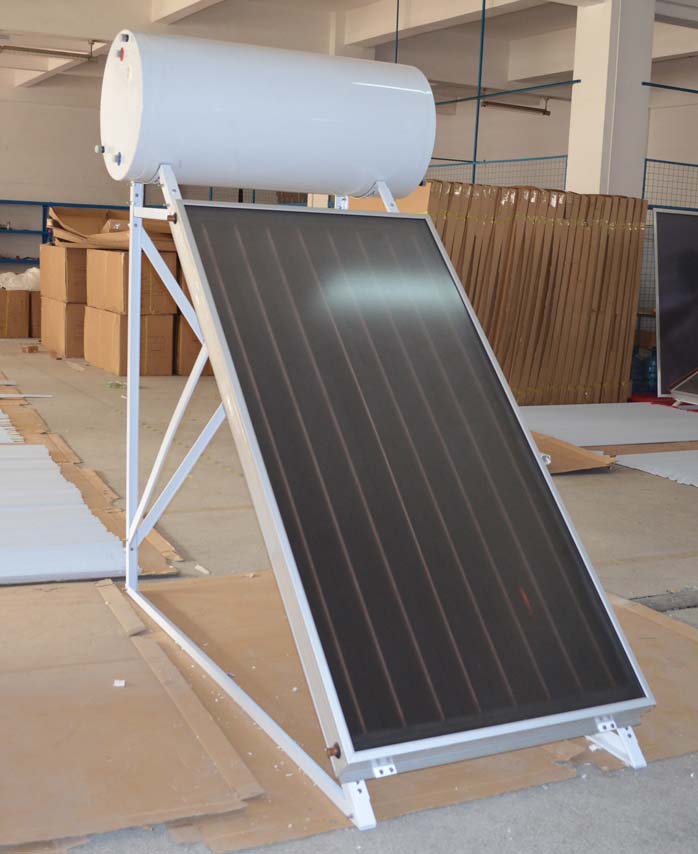

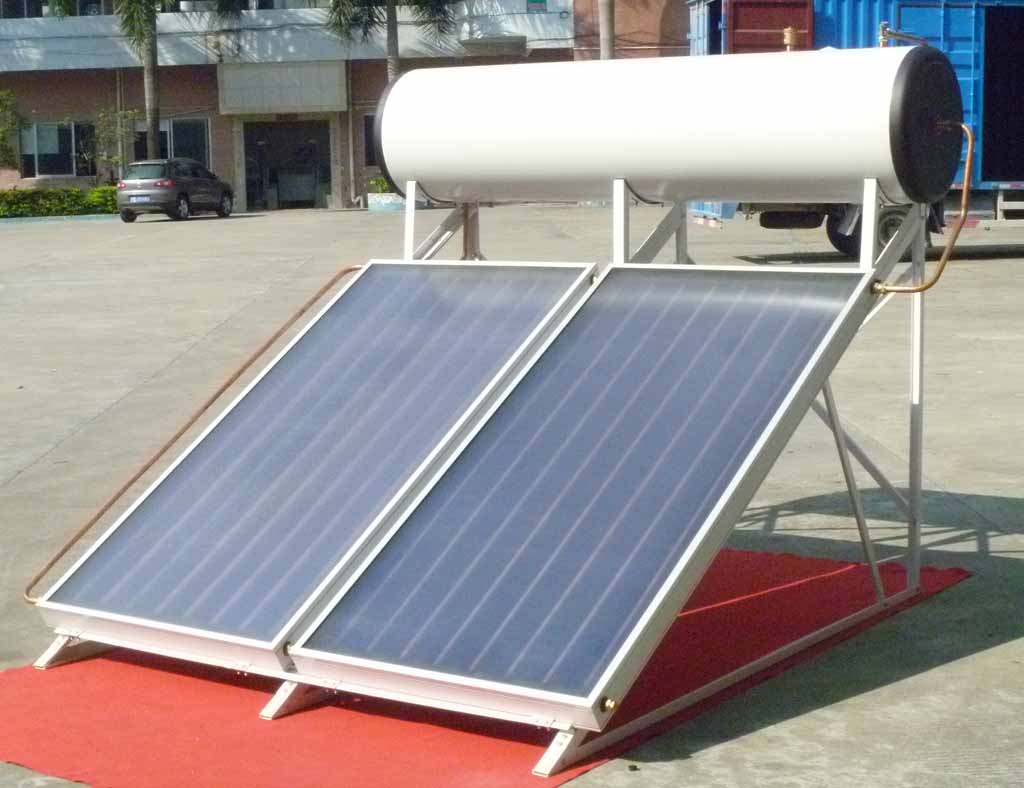

Solar Water Heater (Thermosyphon System)




Flat plate thermosyphon integrating system is composed of flat plate collector and pressurized water tank together .Due to thermosyphon principle,the collector absorbs solar energy to heat the water inside,while the thermosyphon circulation inside enables the heated water to flow into and be stored in the water tank.


→ Stylish slimline design
→ Thermosiphon operation minimises maintenance
→ Electric booster models available
→ Inner tank material: SUS316,SUS304 or enamel
→ Stable quality collector
→ Flexible solution with options of collector and tank capacity
→ Easy to mounting and installation
→ Worklife over 15 years











Type

SWH/400/6-TS

SWH/300/4-TS

SWH/200/3-TS

SWH/150/2-TS

Collector quantity

3

2

1

1

Collector area

6.06

4.04

2.02

2.02

Tank capacity

400L

300L

200L

150L

System weight

196 ㎏

15

108

96

20GP/40GP

17/38

21/45

32/66

39/80
