Active Solar Water Heating System

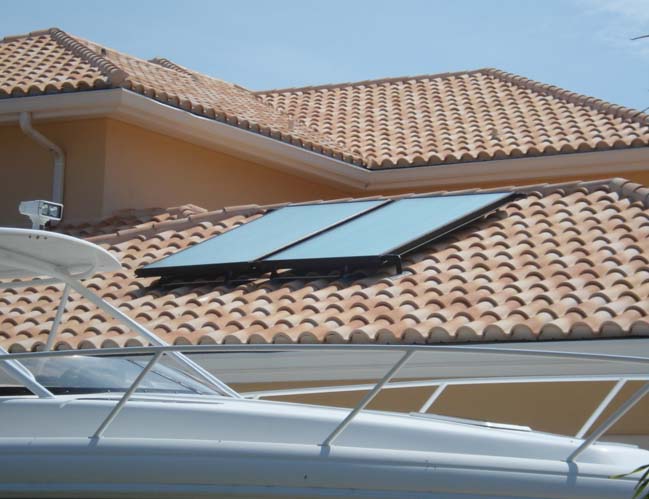

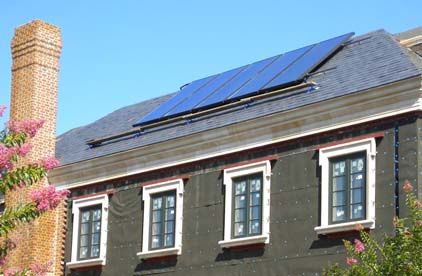

Innosolar solar forced circulation system  flexibly integrates flat plate collectors, water tanks and control system, forming a heating system with closed loop forced split circulation, which is applicable to both household and large scale hot water projects, such as hospitals, hotels and schools.This system operation Automatic control and operation, safe and convenient.



→ Stylish slim line design
→ Forced circulation operation minimises maintenance
→ Electric booster models available
→ Inner tank with porcelain enamel or SUS304 or SUS316
→ Durable coating for protection inside tank
→ Reliable, low maintenance operation
→ Automatic control and operation with user friendly design
→ Flexible solution with options of collector and tank capacity
→ Easy to mounting and installation
→ Perfect combination with buildings









Type

SWH/500/8-FC

SWH/400/6-FC

SWH/300/4-FC

SWH/200/3-FC

SWH/150/2-FC

Collector quantity

4

3

2

1

1

Collector area

8.0

6.0

4.0

3.0

2.0

Tank capacity

500L

400L

300L

200L

150L

Control system

1 set

1 set

1 set

1 set

1 set

System weight

310

250

180

150

120

20GP/40GP

12/26

17/38

21/45

32/66

39/80
